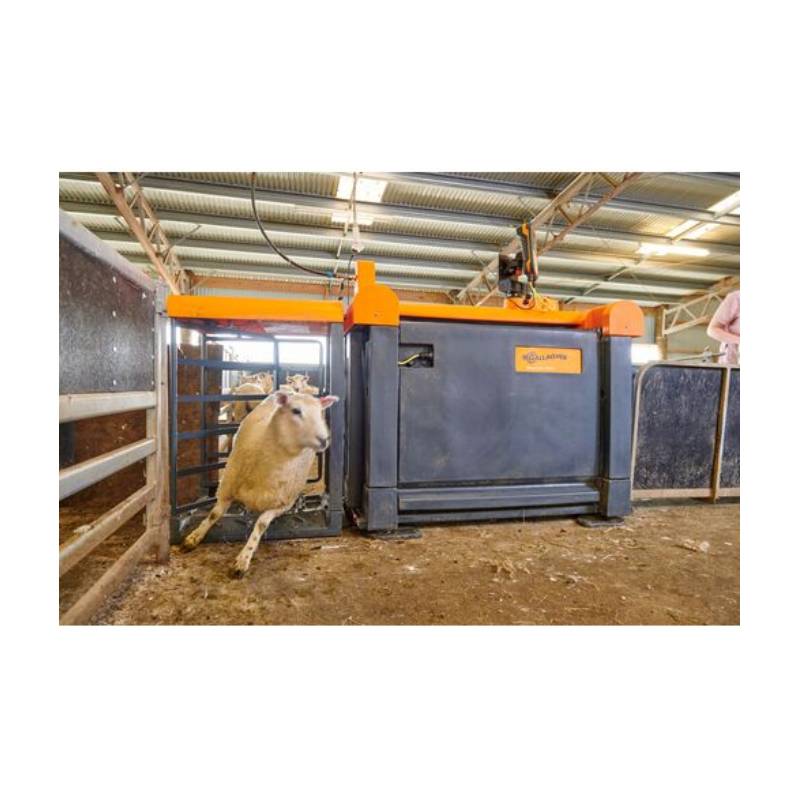

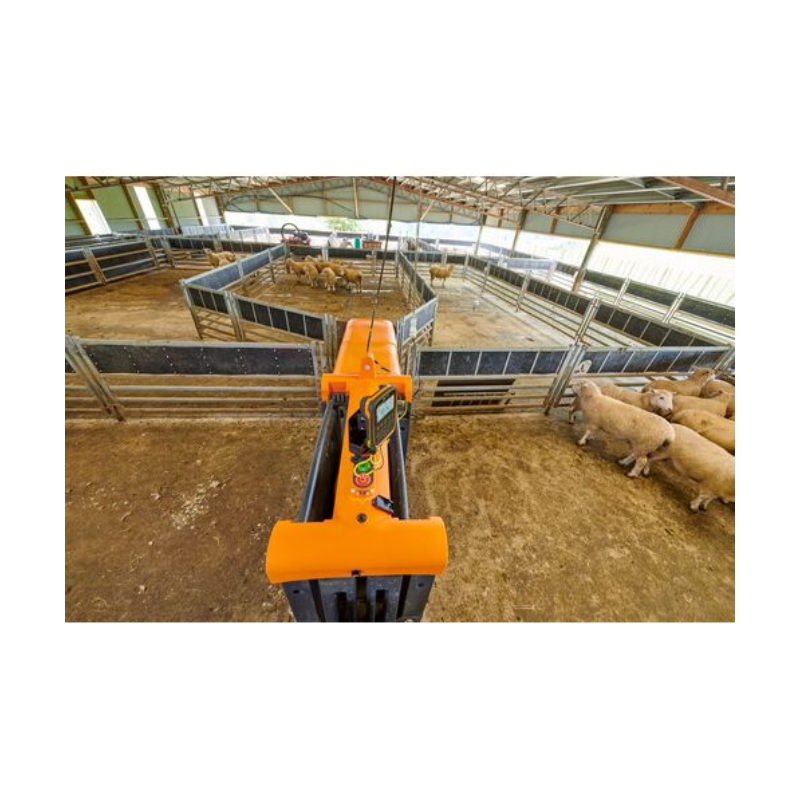

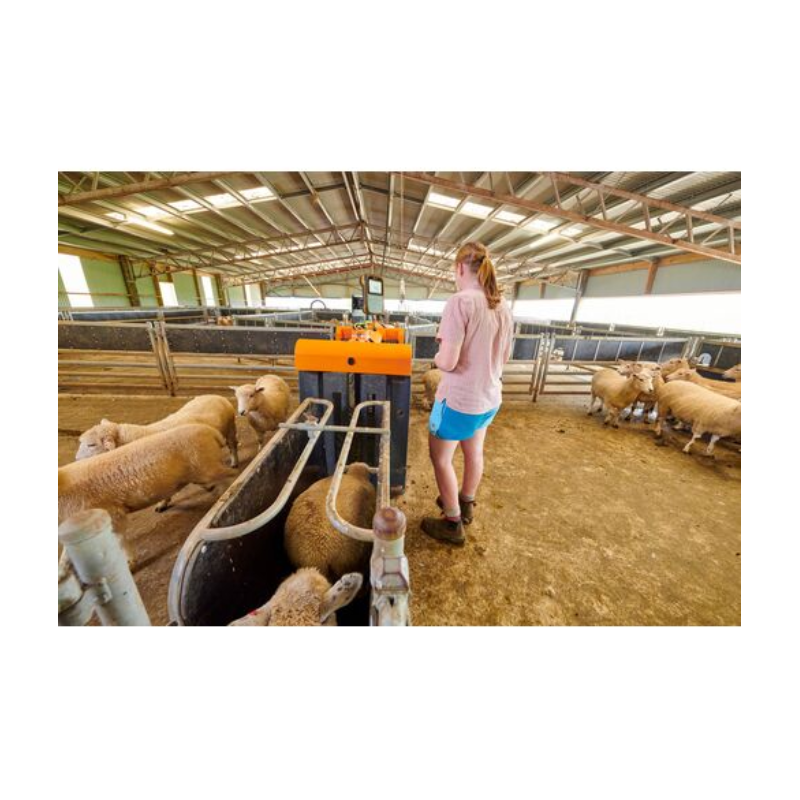

The Gallagher Sheep Auto Drafter is a fully automated weighing and drafting system designed to enhance efficiency and safety in sheep handling. Constructed from durable composite materials, it offers quiet operation and is easily transportable, making it ideal for various farm environments.
Equipped with integrated load cells and a three-way draft module, the system allows for seamless integration with Gallagher EID Tag Reader Controllers and compatible electronic weigh scales (required but not included). Its user-friendly design ensures high stock throughput and minimal stress for both animals and operators.
Gallagher Sheep Auto Drafter Features
Automated Operation
Entry and exit gates are controlled by the machine, enabling one-person operation and reducing labour requirements.
Quiet and Sheep-Friendly
Silent electronic and mechanical operations minimize stress, encouraging sheep to enter the drafter readily.
Durable Construction
Composite materials withstand repeated sheep impact, ensuring longevity and reliability.
Integrated Control Module
Plug in air and power, and the system is ready to operate, simplifying setup and use.
Adjustable Side Panels
Easily adjustable sides accommodate various sheep sizes, from small lambs to large rams.
Expandable Drafting Capability
Extend drafting up to five ways with additional drafter units (sold separately).
- Warranty: 1 Year
- Crate Assembly Weight: 125 kg
- Draft Module Weight: 44 kg
- Dimensions (Crate): 1850 mm (L) x 820 mm (W) x 1550 mm (H)
- Dimensions (Draft Module): 2438 mm (L) x 790 mm (W)
- Power Requirements: 100–240V AC input, 11.5–15V DC output
- Environmental Protection Rating: IP55
- Operating Temperature Range: -15°C to 60°C
- Outdoors Suitable: Yes
- Internal Rechargeable Battery: No
- EID Compatible: Yes

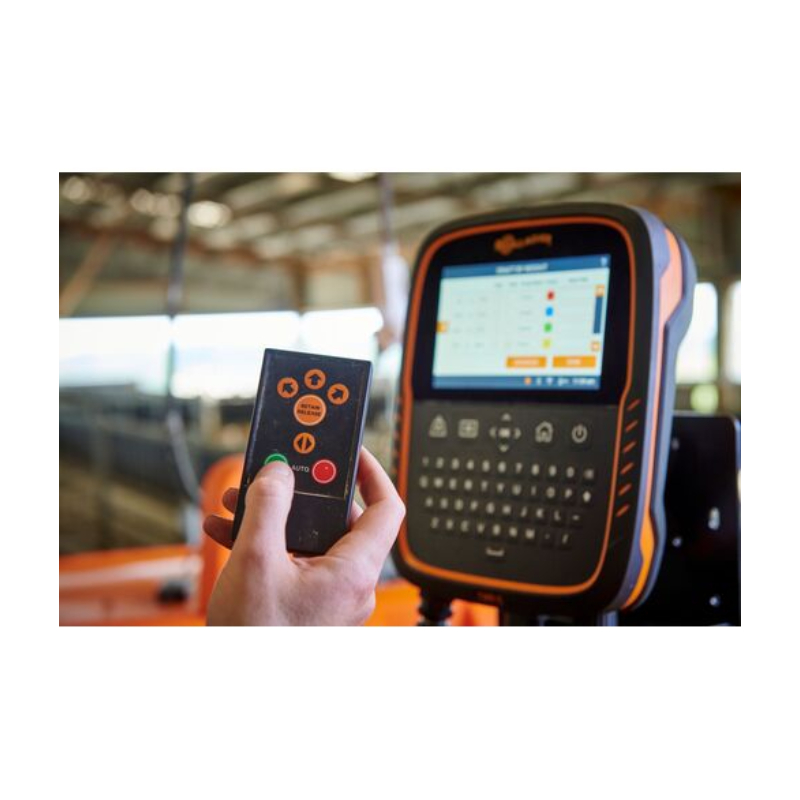

The system includes a weigh crate, integrated load cells, an integrated control module with remote control, and a three-way draft module.
Is the drafter compatible with other EID systems?Yes, it is compatible with Gallagher EID Tag Reader Controllers and most other branded EID-compatible electronic weigh scales.
Can the drafting capability be expanded?Yes, the system can be extended up to five ways with additional drafter units, which are sold separately.

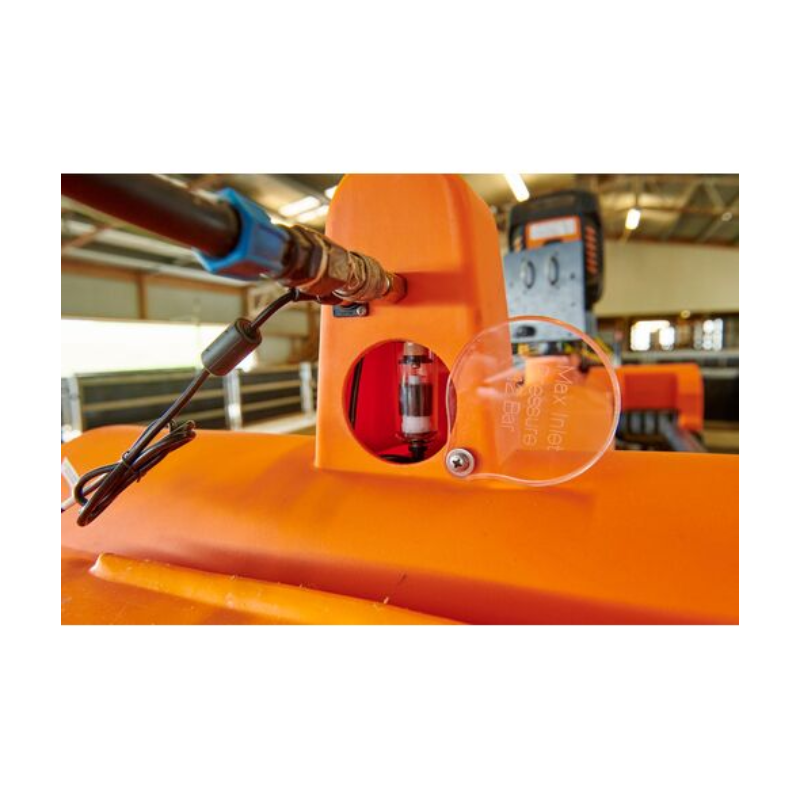

What are the power and air requirements for operation?The drafter requires a 12V DC power supply and a compressed air source with a pressure range of 4–6 bar (60–90 psi).
Is the system portable?Yes, its lightweight design and composite construction make it easily transportable across different farm locations.
